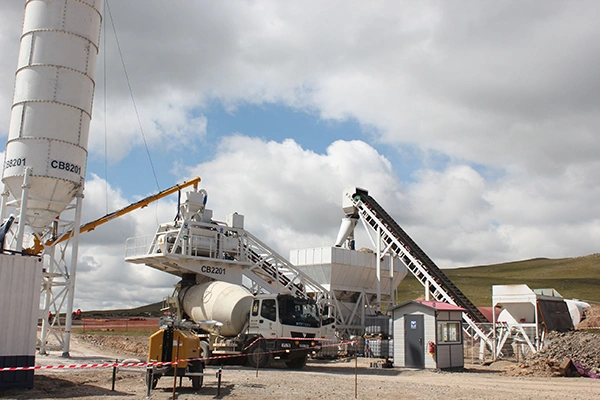

YHZS75
Mobile Concrete Batching Plant
Suitable for medium and large construction projects that may require relocation between different work sections, our 75 m³/h mobile concrete batching plants integrate aggregate batching, material conveying, mixing, precise weighing and automatic control on a customized semi-trailer chassis. Since the main production sections remain integrated on the same chassis, these mobile batching plants can be towed from one job site to another with less dismantling and setup work.
-
Production Capacity: 75 m³/h -
Mixer Type: Twin-Shaft Concrete Mixer -
Mixer Power: 2×30 kW -
Aggregate Bin Capacity: 4×15 m³
- Equipped with a heavy-duty multi-axle trailer chassis and a standard kingpin at the front, the plant can be connected to a heavy-duty tractor truck after the external power supply and auxiliary equipment are disconnected.
- As the chassis includes several load-bearing support points, the concrete plant can be set up on a flat, hardened surface with enough load capacity instead of requiring deep excavation and a large concrete foundation, which shortens the setup period and reduces the amount of civil work needed before production.
- The JS1500 twin-shaft compulsory mixer can handle dry concrete and higher-strength mixes, with fast, even mixing and quick discharge for continuous concrete production.
- Four aggregate bins, each with a capacity of 15 m³, keep more sand and stone available for batching, so the loader does not need to refill the bins as often during continuous production.
- Since the concrete plants use automatic electrical control, operators can switch between manual and automatic modes and keep production data for later review.
| Theoretical Production Capacity (m³/h) | 75 |
| Mixer Model | JS1500 |
| Mixer Power (kW) | 2×30 |
| Mixing Cycle (s) | 72 |
| Max. Aggregate Size (mm) | Φ80 |
| Standard Aggregate Bin Capacity (m³) | 4×15 |
| Aggregate Types | 2/3/4 |
| Discharge Height (m) | 4.1 |
| Total Weight (t) | ≈35 |
| Installed Power (kW) | ≈110 |
| Power Supply | 380V/220V/415V/440V, 50/60HZ, 3 Phase |
-
Mobile ChassisMobile concrete plants have a heavy-duty trailer chassis with pneumatic tires, a kingpin and hydraulic support legs. For transportation, the whole concrete plant can be folded as necessary to reduce its overall dimensions, so it can meet common container and road transport requirements for easier overseas shipment.
-
Aggregate Batching UnitSand and stone are stored separately in 2 to 4 aggregate bins before weighing. Belt feeding can be added when needed, especially on sites where loading aggregates from a higher position would be inconvenient for a wheel loader.
-
Belt ConveyorAggregates move continuously from the batching section toward the mixer through the belt conveyor. The conveyor is part of the mobile frame and can be folded for transport, so there is no need to dismantle the complete conveying section every time the concrete plant needs to be moved to another site.
-
Concrete MixerThe mixer is integrated into the main mobile frame, so it can be transported with the complete plant without being removed and can return to production quickly after relocation. Most mobile plants use a twin-shaft compulsory mixer, while smaller models can use a drum mixer and advanced configurations can have a vertical-shaft planetary mixer.
-
Powder Storage and Material WeighingCement and fly ash are stored in separate silos and transferred by screw conveyors for weighing. Water and additives have their own scales, so aggregates, powders, water and additives can all be measured before they enter the mixer.
-
Control SystemThe automatic control system can switch between manual and automatic operation, and an English-language interface is available as an option. Operators can save concrete mix recipes, correct small weighing differences automatically, check fault alarms, print production data and monitor the plant remotely.
