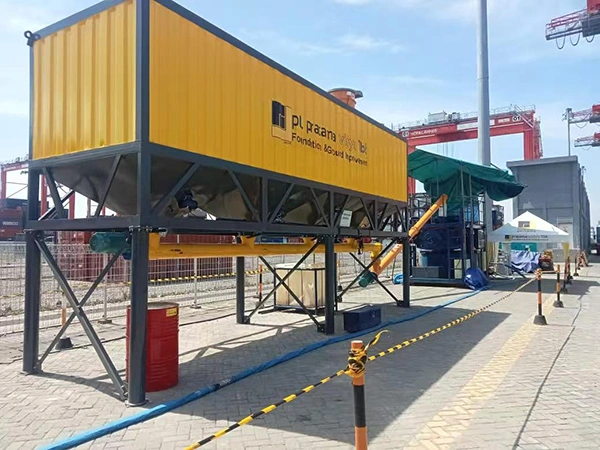

Horizontal Cement Silo
The horizontal cement silos provide enclosed storage for cement, fly ash, mineral powder and other bulk powder materials in a low-profile configuration. With the silo body positioned parallel to the ground, the system is suitable for sites with height restrictions, limited installation space or frequent relocation requirements. Its low center of gravity and simplified foundation requirements also make it preferrable in cases where silo location is changed frequently. Horizontal cement silos are commonly used at construction sites, road and tunnel projects, and other locations where concrete is produced directly on site.
Advantages
- The silo offers a practical solution for storing cement and dry bulk materials in a horizontal position, distinct for its low profile and ease of transport. It can be positioned directly on level ground with adequate load-bearing capacity.
- A high-torque horizontal screw conveyor and pneumatic fluidization system promote consistent powder discharge and effectively reduce material buildup or dead zones.
- Fully welded construction and a low center of gravity improve resistance to wind loads and seismic forces, especially in coastal areas exposed to strong winds and sites with challenging geological conditions.
- A cartridge dust collector and pressure relief valve control dust emissions and maintain safe internal silo pressure during operation.
Technical Specifications
| Capacity | Overall Dimensions (L×W×H, m) | Plate Thickness | Self-Weight (t) | Standard Accessories |
| 30T | 6.1×2.5×2.2 | Shell 3 mm / Hopper 5 mm | 2.8 | Cartridge Dust Collector; Flow-aid System; Level Indicators; Pressure Relief Valve |
| 50T | 6.5×2.9×3.0 | Shell 3 mm / Hopper 6 mm | 3.6 | |
| 60T | 7.5×2.9×3.0 | Shell 3 mm / Hopper 6 mm | 4 | |
| 80T | 10.2×2.9×3.0 | Shell 3 mm / Hopper 6 mm | 5.5 | |
| 100T (Single-Tier) | 12.5×2.9×3.0 | Shell 3 mm / Hopper 6 mm | 7 | |
| 100T (Double-Tier) | 6.5×2.9×4.5 | Shell 3 mm / Hopper 6 mm | 7.8 |
