YHZS35

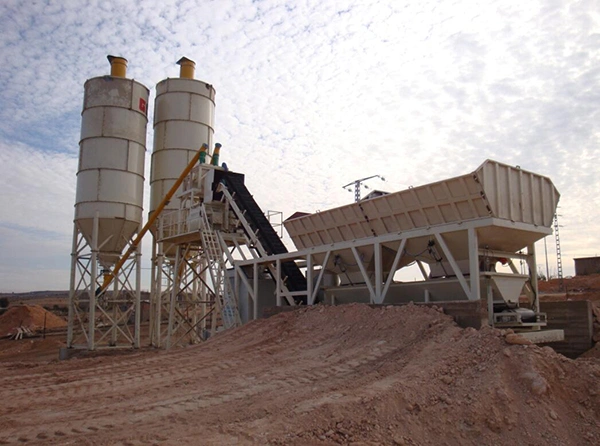

Mobile Concrete Batching Plant
Our mobile concrete batching plants with a capacity of 35 m³/h are suitable for temporary construction, road repairs, bridge work and water conservancy projects that may require frequent relocation. Most of the storage, weighing, conveying, mixing, discharge and control equipment is integrated on a single trailer chassis, so the concrete plant can move between sites with less dismantling and setup work.
-
Production Capacity: 35 m³/h -
Mixer Type: Twin-Shaft Concrete Mixer -
Mixer Power: 30 kW -
Aggregate Bin Capacity: 3×5 m³
- A standard kingpin at the front of the chassis connects to a heavy-duty tractor truck for towing. Before relocation, operators only need to disconnect the external power supply and remove the external powder silo and screw conveyor.
- Mechanical or hydraulic support legs keep the plant stable once it is set up at the job site.
- A flat, hard surface with good load-bearing capacity is usually enough to install the mobile concrete plants, so there is no need for the deep concrete foundation normally required by stationary models.
- Their compact integrated layout needs less prepared ground and can be set up quickly on narrow construction sites or remote road sections.
- The JS750 twin-shaft mixer can handle dry, plastic and special concrete mixes, with even mixing for consistent concrete quality.
- The automatic electrical control system lets operators switch between manual and automatic operation, keeps a record of production data for later checking and uses simple controls that are easy to learn.
| Theoretical Production Capacity (m³/h) | 35 |
| Mixer Model | JS750 |
| Mixer Power (kW) | 30 |
| Mixing Cycle (s) | 72 |
| Max. Aggregate Size (mm) | Φ60 |
| Standard Aggregate Bin Capacity (m³) | 3×5 |
| Aggregate Types | 2/3/4 |
| Discharge Height (m) | 3.8 |
| Total Weight (t) | ≈22 |
| Installed Power (kW) | ≈73 |
| Power Supply | 380V/220V/415V/440V, 50/60HZ, 3 Phase |
-

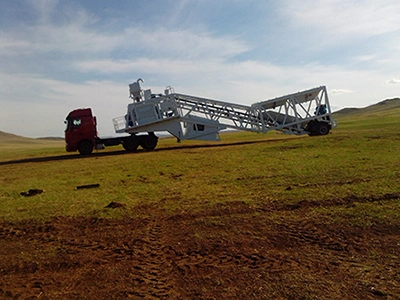

Mobile ChassisMobile concrete plants have a heavy-duty trailer chassis with pneumatic tires, a kingpin and hydraulic support legs. For transportation, the whole concrete plant can be folded as necessary to reduce its overall dimensions, so it can meet common container and road transport requirements for easier overseas shipment.
-

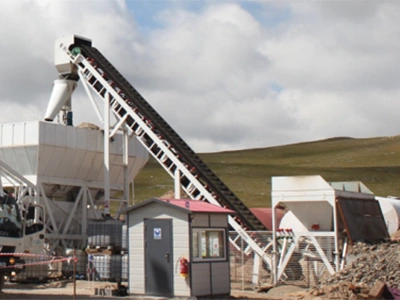

Aggregate Batching UnitSand and stone are stored separately in 2 to 4 aggregate bins before weighing. Belt feeding can be added when needed, especially on sites where loading aggregates from a higher position would be inconvenient for a wheel loader.
-

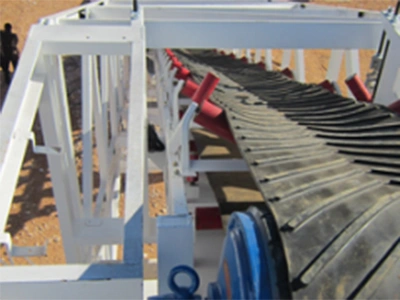

Belt ConveyorAggregates move continuously from the batching section toward the mixer through the belt conveyor. The conveyor is part of the mobile frame and can be folded for transport, so there is no need to dismantle the complete conveying section every time the concrete plant needs to be moved to another site.
-

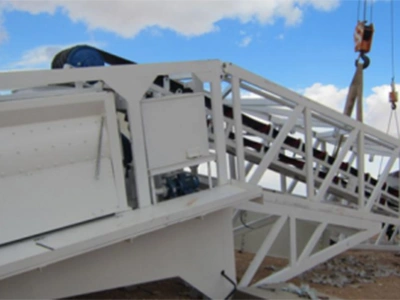

Concrete MixerThe mixer is integrated into the main mobile frame, so it can be transported with the complete plant without being removed and can return to production quickly after relocation. Most mobile plants use a twin-shaft compulsory mixer, while smaller models can use a drum mixer and advanced configurations can have a vertical-shaft planetary mixer.
-

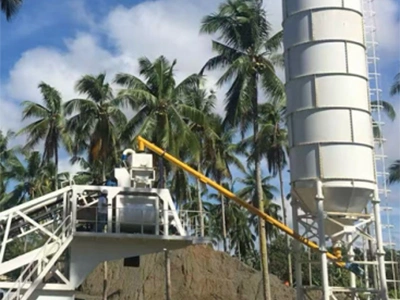

Powder Storage and Material WeighingCement and fly ash are stored in separate silos and transferred by screw conveyors for weighing. Water and additives have their own scales, so aggregates, powders, water and additives can all be measured before they enter the mixer.
-

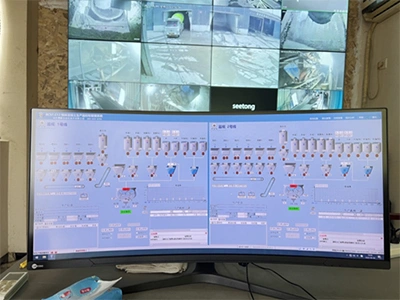

Control SystemThe automatic control system can switch between manual and automatic operation, and an English-language interface is available as an option. Operators can save concrete mix recipes, correct small weighing differences automatically, check fault alarms, print production data and monitor the plant remotely.
